High Temperature U Type Furnace Molybdenum Mosi2 Heating Element For Lab Oven Up To 1800C

Product Categories
HENAN ZG INDUSTRIAL PRODUCTS CO.,LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

High Temperature U Type Furnace Molybdenum Mosi2 Heating Element For Lab Oven Up To 1800C

Place of Origin : China

MOQ : 1/pcs

Price : 5/usd/pcs

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000/pcs/month

Delivery Time : 3workdays

Packaging Details : Strong wooden box for Global shipping

Contact Now

Product Description
High Temperature U Type Furnace Molybdenum Mosi2 Heating Element For Lab Oven Up To 1800C
Molybdenum disilicide(MoSi2) heating element is one resistance heating component made from MoSi2 or as the basic material. When it's heated to high temperature under the oxidizing atmosphere, one dense MoSi2film will be formed on its surface to protect the element against oxidizing further. Therefore, the element has unique anti-oxidation property under high temperature atmosphere. The highest temperature can reach 1900°℃, the applicable temperature is between 500-1800℃.
Product Name
Maximun Element Working Temperature
Recommended Furnace Temperature
XR1800
1830℃(3326℉)
1700℃
XR1850
1850℃(3362℉)
1750℃
XR1900
1830℃(3326℉)
1800℃
High Temperature U Type Furnace Molybdenum Mosi2 Heating Element For Lab Oven Up To 1800C
High Temperature U Type Furnace Molybdenum Mosi2 Heating Element For Lab Oven Up To 1800C
Volume Density
Bending Strength
Vickers-Hadness
Porosity Rate
Water Absortion
Hot Extensiblity
5.5-5.6kg/cm3
15-25kg/cm3
(HV)570kg/mm3
7.4%
1.2%
4%
High Temperature U Type Furnace Molybdenum Mosi2 Heating Element For Lab Oven Up To 1800C

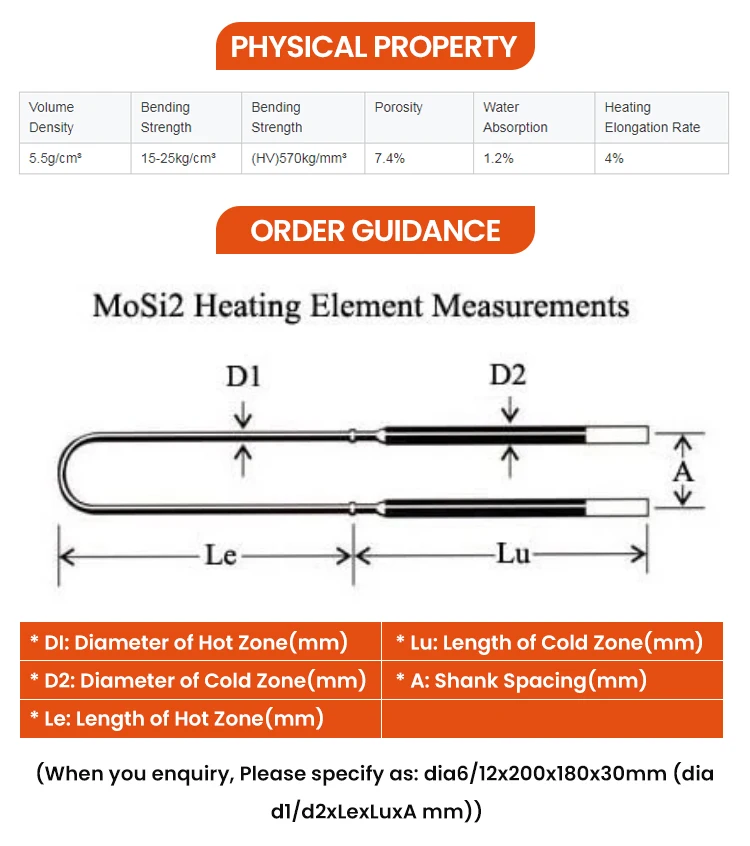

When quote, Please send us the size as D1/D2*Le*Lu*A(mm)
High Temperature U Type Furnace Molybdenum Mosi2 Heating Element For Lab Oven Up To 1800C
High Temperature U Type Furnace Molybdenum Mosi2 Heating Element For Lab Oven Up To 1800C

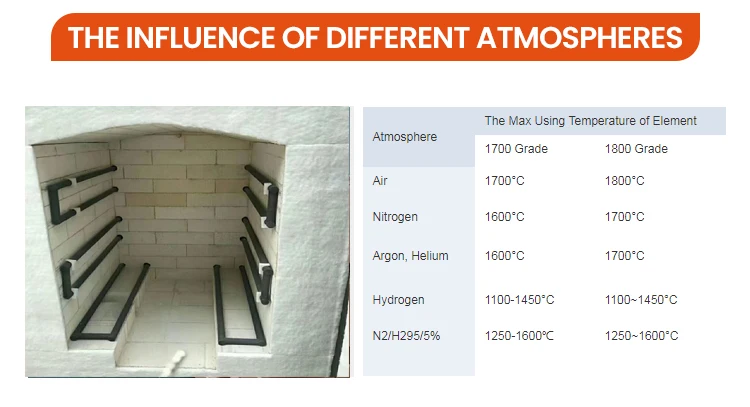

Atmosphere
The Max Using Temperature of Element
1700 Grade
1800 Grade
Air
1700℃
1800℃
Nitrogen
1600℃
1700℃
Argon, Helium
1600℃
1700℃
Hydrogen
1100-1450℃
1100-1450℃
N2/H2 95
1250-1600℃
1250-1600℃

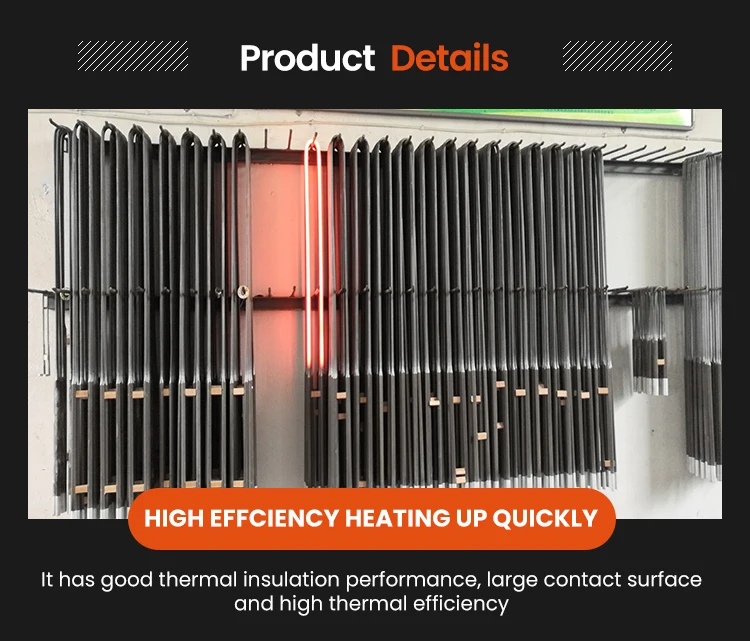

Product Details
High Temperature U Type Furnace Molybdenum Mosi2 Heating Element For Lab Oven Up To 1800C
High Temperature U Type Furnace Molybdenum Mosi2 Heating Element For Lab Oven Up To 1800C
High Temperature U Type Furnace Molybdenum Mosi2 Heating Element For Lab Oven Up To 1800C
High Temperature U Type Furnace Molybdenum Mosi2 Heating Element For Lab Oven Up To 1800C

Product Tags:

High Temperature MoSi2 Heating Element



Lab Oven MoSi2 Heating Element



1800C MoSi2 Heating Element


High Temperature U Type Furnace Molybdenum Mosi2 Heating Element For Lab Oven Up To 1800C Manufactures

High Temperature U Type Furnace Molybdenum Mosi2 Heating Element For Lab Oven Up To 1800C Images
